The Virtual Facebow has been developed as an open-source tablet app that provides an alternative to the conventional facebow for the mounting of casts to an articulator. The Virtual Facebow implements several design features to prevent and minimize errors, provide accurate mounting and reinforce the anatomical considerations associated with articulators. The Virtual Facebow is an effective, efficient and accessible digital companion to dental implant diagnoses and treatment planning.
Prior to the delivery of dental treatment, carefully established diagnosis and treatment planning is required.This is particularly important with dental implant therapy.

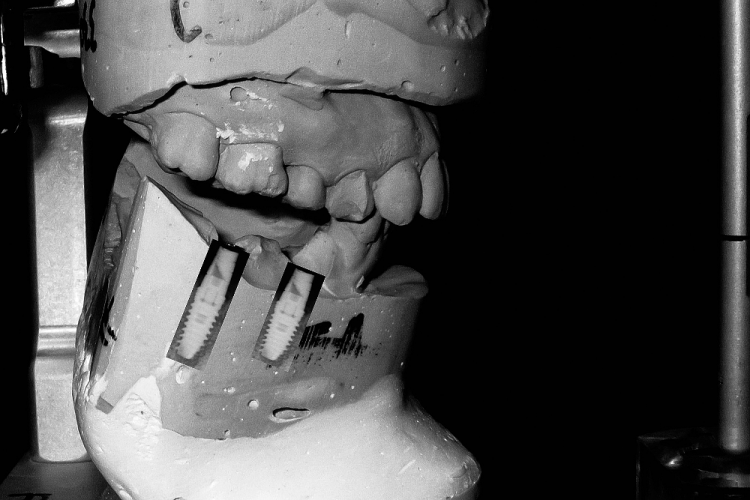

To assist the process, the mounting of a patient’s diagnostic casts remains an important step, as it allows the assessment of critical factors such as occlusion, implant position and forces direction. It also allows exploration into prosthetic options, such as angled abutments (Fig. 1).
To support proper mounting of patient casts, a facebow, which aligns the maxilla to relative facial planes, can be utilized. Errors in the utilization of the facebow, or complete lack thereof, create critical errors in diagnoses and treatment planning that become magnified in the design and delivery of implant prosthetics.
The Virtual Facebow has been developed as a digital substitute to the analogue facebow to address the shortcomings.

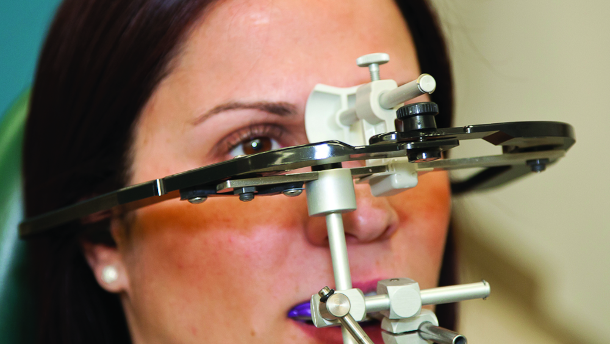

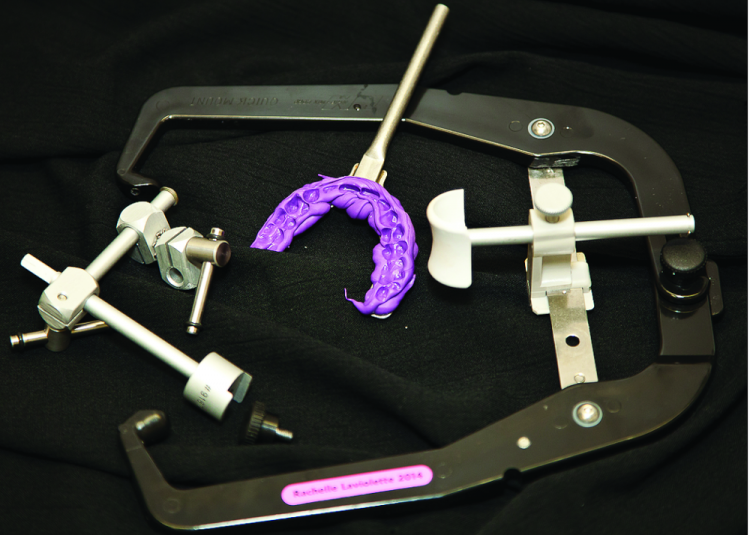

The facebow (Fig. 2) facilitates the mounting of the maxillary cast to the articulator. The Whip Mix Quick Mount facebow (Whip Mix, Louisville, KY) is composed of a caliper-type instrument that anchors into the ear canals and is balanced by the bridge of the nose.

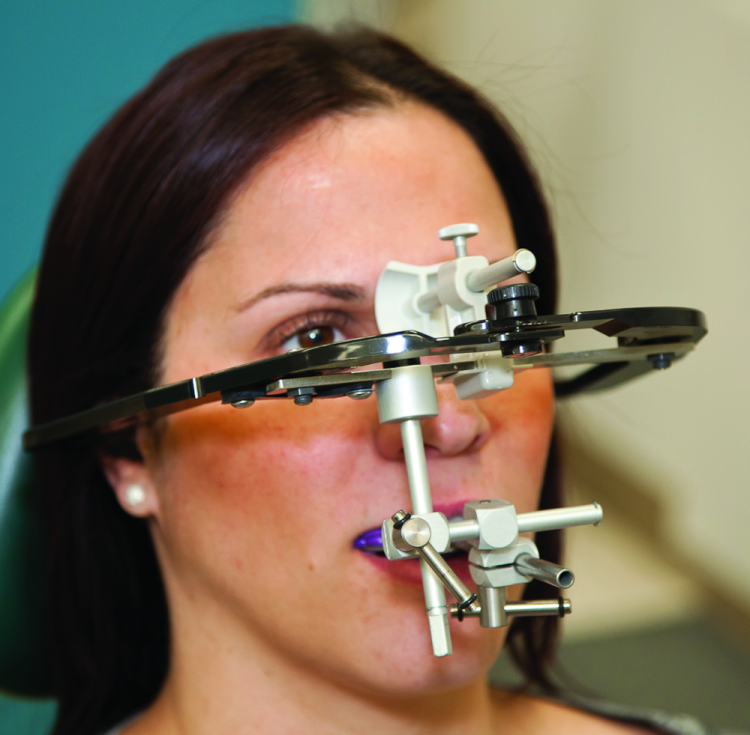

A bite fork is utilized, embedded with polyvinylsolixane, to register the position of the maxillary teeth. The bite fork is then transferred to an articulator, through the use of a transfer jig. The maxillary cast is positioned and mounted to the upper portion of the articulator. The facebow is a largely omitted during the diagnosis and treatment-planning phase due to its shortcomings. It can prove tedious and uncomfortable for the patient, as the ear canal projections, bite fork and nose bridge can apply pressure and pain. The facebow can prove tedious and frustrating to the clinician, due to the subjective positioning and multiple adjustments[3,4,5] (Fig. 3).
If utilized incorrectly, the facebow can result in errors, which include:
- facebow application;
- patient position;
- in maxillary cast orientation;
- in mandibular cast orientation; occlusal relationship.

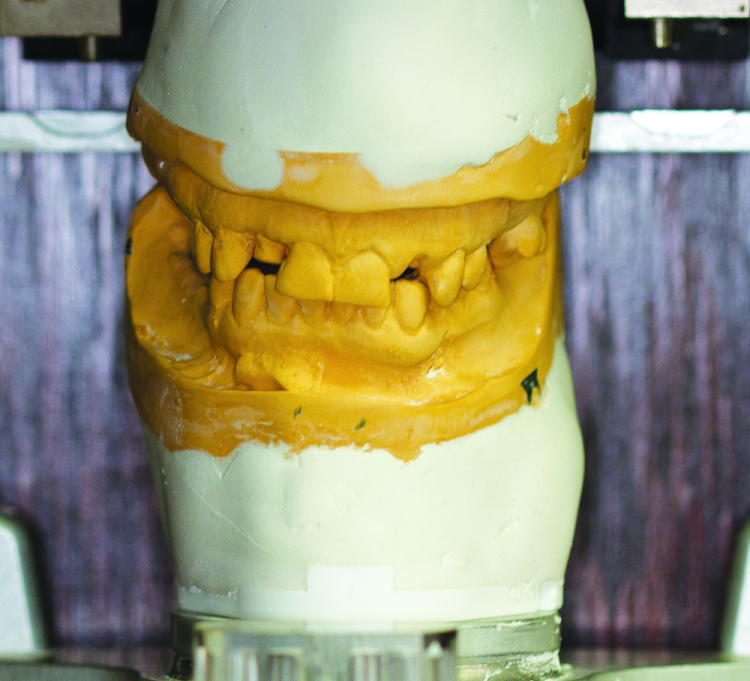

Errors have direct impact on the assessment of inter-arch space, occlusal contacts and force direction (Figs. 1–4). Errors will then affect the diagnosis, treatment plan, implant type, abutment angle and prosthesis. If inaccurate mounting errors are not recognized early, the outcome may yield a compromised result, poor prosthesis (form and function), timely adjustments and a remake.
As with any compromised result, the ultimate consequence would include inefficient use of time, unnecessary costs, patient unhappiness, stress on the clinician and an unnecessary environmental impact.
To rectify these compounded issues, the Virtual Facebow app (VF) (Research Driven, Komoka, Ontario) was developed as a digital substitute for the analog facebow.
Several safeguards were incorporated to minimize errors in positioning and orientation. The VF has been developed as an app that incorporates patient photos, alignment verification, anatomical relevance and confirmation of occlusion. The open source tablet app has been developed to be accessible through affordable tablet cost, affordable app cost and unlimited use.
Data can be readily shared, used on various devices, requires no specialized software, is simple to open and read and provides an easy-to-email option. The VF was designed to be efficient, effective, economical and educational. The VF’s current requirements include: any supported tablet device with an Android operating system, a back-facing camera and a minimum system update of 4.0.3. The VF is currently available on the Google Play market.
Although the VF app has been designed to be used as a standalone substitute for the analogue facebow, several peripherals have been developed to offer even more simplicity to the process. A patient positioned verifies patient orientation, a vertical tablet stand simplifies operation and an articulator mount positions the maxillary cast.
Methodology: Case study

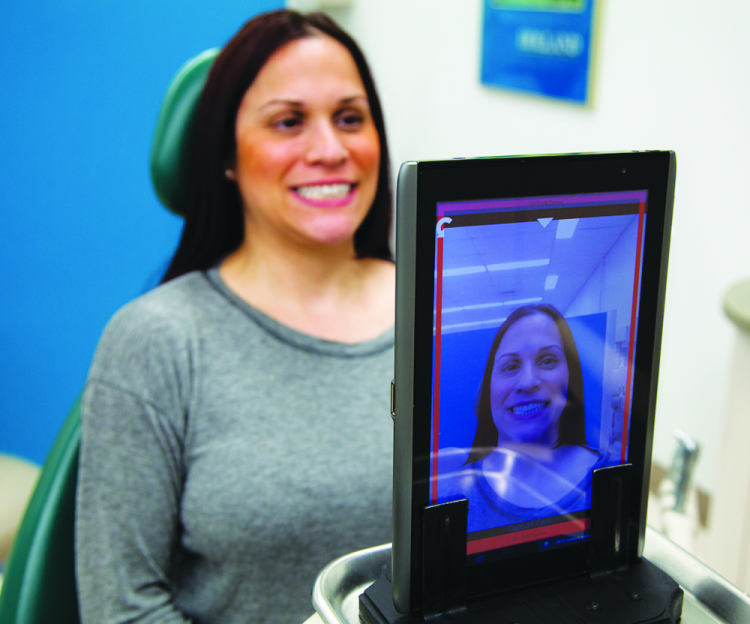

The following is a step-by-step instruction on the VF utilization. Properly position the patient and confirm orientation. Place the tablet in the stand within 6 to 12 inches of the patient. Launch the VF app (Fig. 5).

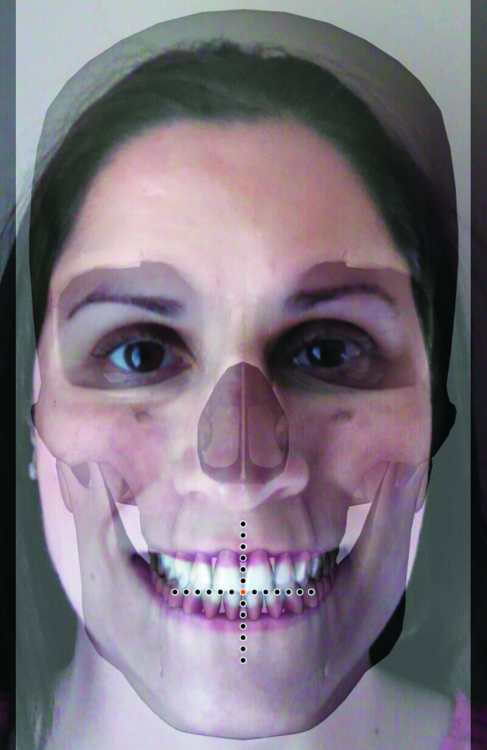

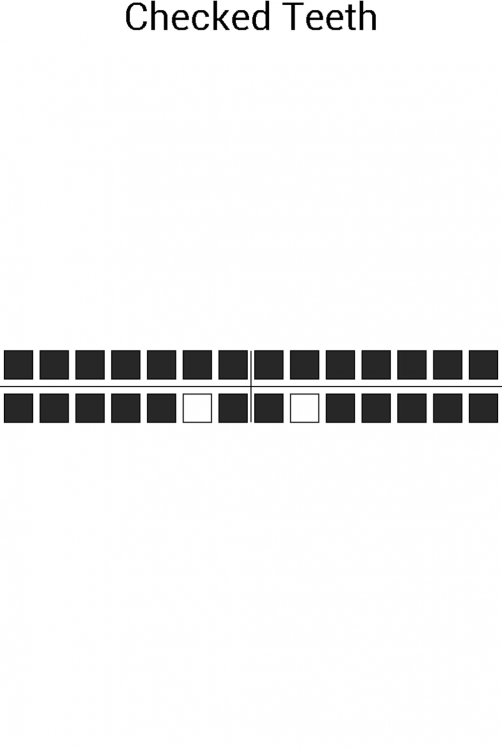

Position the skull and reference markers over the patient’s image. Confirm alignment of tablet and markers and simply take a photo. Resize and reposition the patient photo if required and save the image. Verify orientation of midlines, incisal edges, occlusal planes and anatomical references by altering the transparency of either the skull or face image (Fig. 6). Clinically assess occlusal contacts (Fig. 7) and input via the touch screen (Fig. 8). Clinical component has been completed.

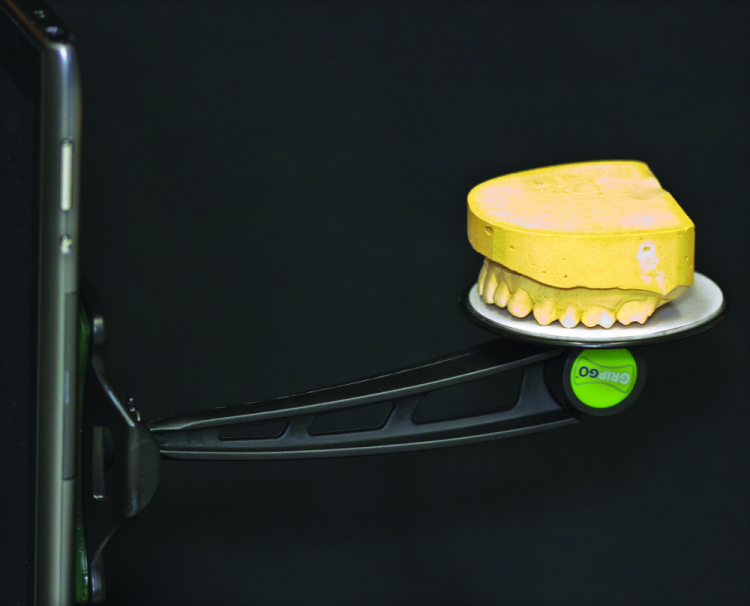

If the clinician has delegated mounting to the laboratory, then the records phase has been completed. The following applies to those who mount their own casts. Position the tablet in the stand 6 to 12 inches from the cast and launch the VF app. Place the maxillary cast on the articulator mount (Fig. 9). The patient image will appear.

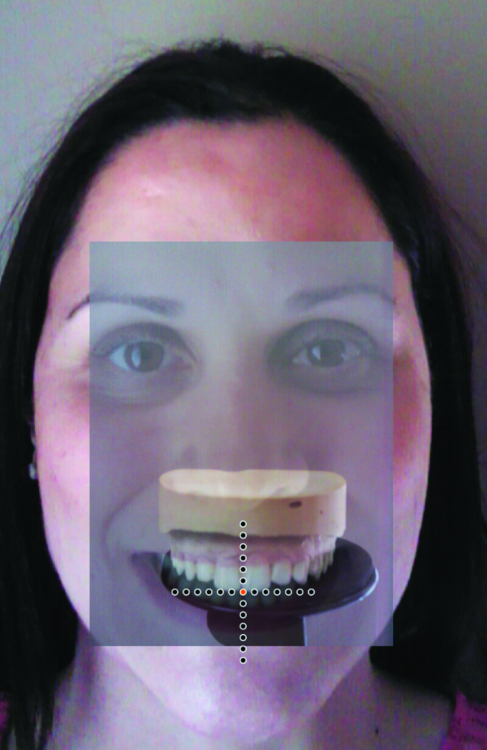

Adjust orientation of cast (tilt) to confirm alignment with the patient markers. Verify orientation of midline, incisal edges, occlusal plane and facial references (Fig. 10).
When the cast is correctly positioned, simply take a photo. Resize and reposition the image if required and save the image. Orientation can be confirmed by altering the transparency of either the face or cast image. Mount the maxillary cast to the upper articulator. The record of occlusal contacts (Fig. 8) will then be displayed. Position the mandibular cast to the maxillary cast, confirming contacts,and mount the mandibular cast.

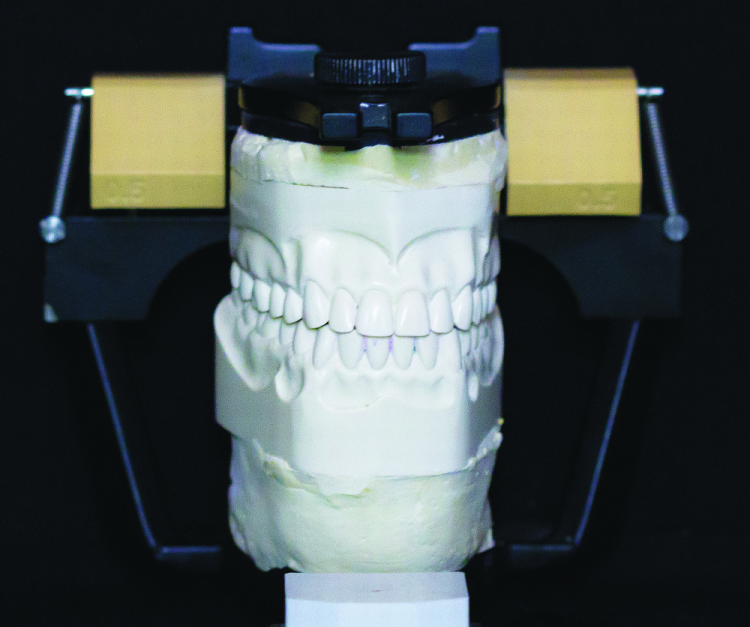

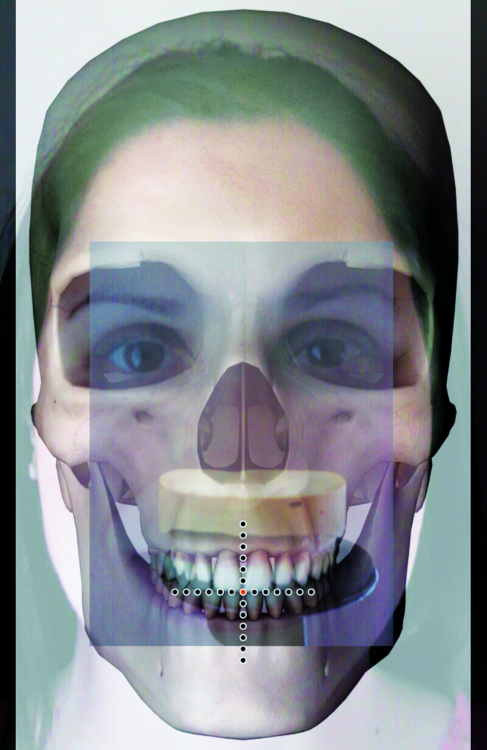

The VF will then generate a composite of the skull, face and cast. The operator has the ability to alter the transparency of any image to reconfirm the position of the skull to the patient’s face and, ultimately, to the cast (Fig. 11). The laboratory component has been completed (Fig. 12).
The files are then saved on the hard drive as a series of PDFs and JPGs, both of manageable size. The user has the option of emailing either the complete series or individual images, in PDF or JPG, to any third party. The user has the ability to refer back to any image but cannot modify any of the images. A series of six screenshots document the VF process.
The VF utilizes several proprietary design features that enable a tablet device to have the ability to record, confirm and reproduce the orientation of the maxilla to relative facial landmarks. This enables a simple, efficient and effective technique in the mounting of the maxillary cast to the articulator.

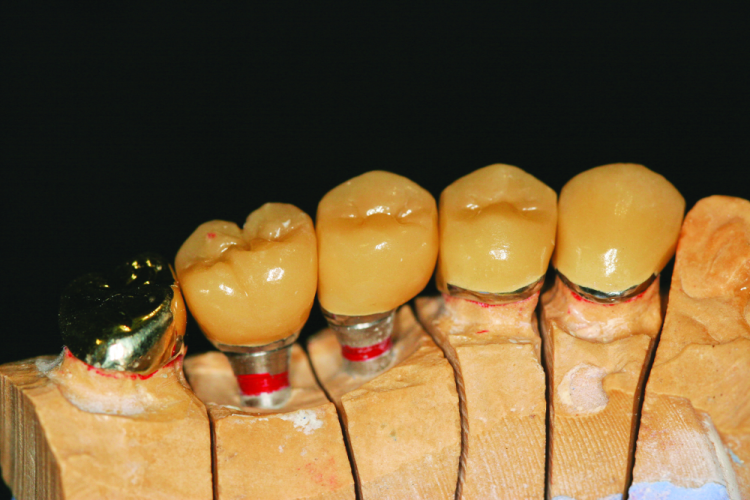

The VF also records the maxillo-mandibular relationship vital to correct mounting, enabling the accurate mounting of complex implant cases (Fig. 13). With exact mounting, the proper position and angulation of dental implants can be achieved.
A pilot study was recently performed at the Schulich School of Medicine & Dentistry at Western University. Patients with restored dental implants were selected. A practitioner assessed the occlusion. Impressions and required records were taken, and casts were mounted.
One dental student utilized the analogue facebow, the other the virtual facebow. Mounting was assessed in terms of: cast position (anteriorposterior and lateral), quantity of occlusal contacts, required clinical, laboratory and total time and cost. Preliminary analysis suggests that the VF is more accurate, efficient and cost-effective. Data will presented in the near future.
The use of cone-beam computer tomography remains the gold standard of dental implant treatment planning. However, many clinicians have barriers to the technology either from limited finances, physical access or intimidation. Many implant cases are planned and delivered with little to no clinical records, other than final impressions. The Virtual Facebow provides a digital companion that is accessible, affordable and understandable.
The Virtual Facebow is an open-source tablet app that not only facilitates the mounting of the maxillary cast but offers a record of occlusion. The VF also reinforces the anatomical basis of articulator mounting and supports clinical records through patient photographs.
The VF provides the clinician with a digital alternative to the analog facebow. Although evaluated through a pilot study, a larger research project would provide further validation.
By reducing errors in the diagnosis and treatment phases of implantology, the VF hopes to prevent and minimize errors incurred through incorrect mounting. Dental implant therapy can then be planned and delivered with the affirmation that mounting has not faulted the process of treatment delivery.
Editorial note: The Virtual Facebow has been acquired by Whip Mix Corporation. Version 2.0 has been developed to allow a simplified approach. The new version will be available in early summer of 2014.
Editorial Note: A complete list of references is available from the publisher.
This article was published in CAD/CAM international magazine of digital dentistry No. 02/2014.
